While the experts at Hughes Engines are much more known for their work with big and small block Mopars, they’ve also had a hand in a G3 Hemi build or two. In fact, they’ve stroked a 6.1L to 426 cubic inches and proceeded to make a healthy 740 horsepower with it.

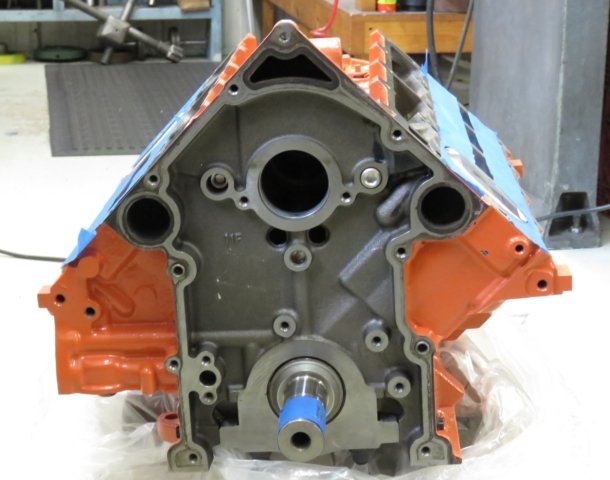

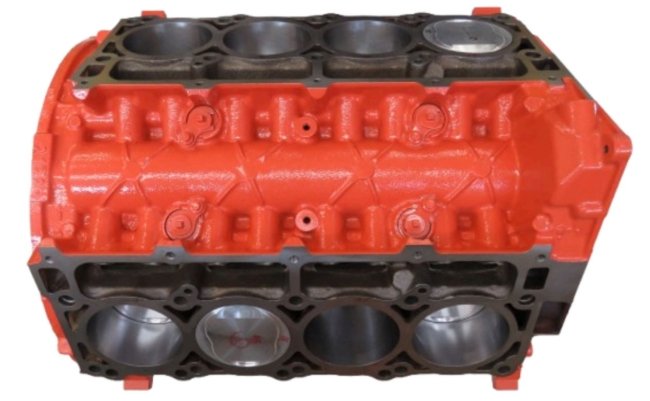

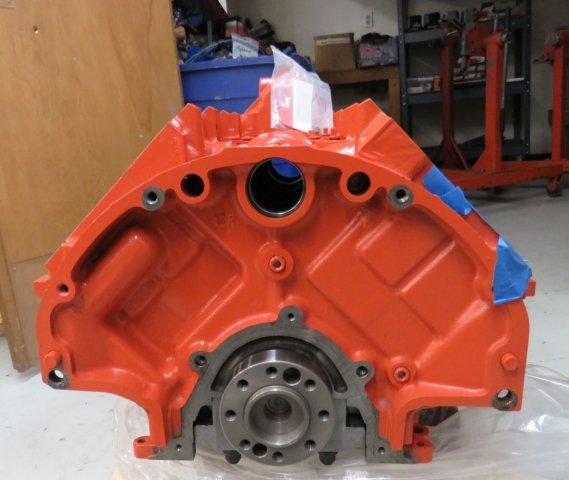

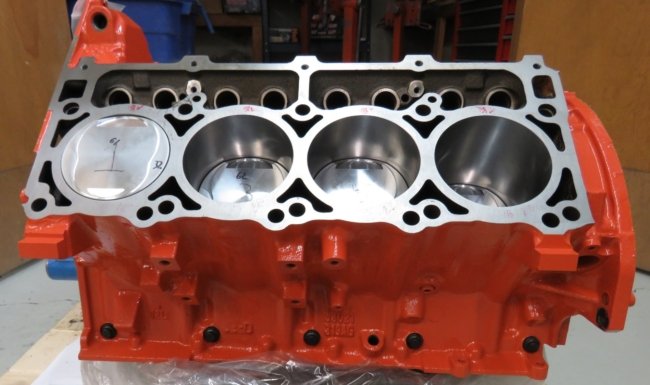

Right now, they have another stroker available for any Hemi-hungry enthusiast to buy and finish building. This one is based on a 5.7L block and features a 4.080” Molnar crankshaft to bump the total up to 401 cubes.
This short block was built to be bomb-proof and the component list tells the tale. They only have one and it’s priced at a smokin’ $6,640 while it lasts. Give them a call at 309-745-9558 to check availability or keep the parts list in your back pocket for your next rocket.
This short block was originally built to be a max effort premium Hemi engine for advertising our shop, but we lost our machinists and switched our shop efforts to the wedge engines parts only. No expense was spared on parts quality or labor operations.
- Stripped, hot tanked, and crack checked (no cracks)
- Handwashed
- Chased all bolt holes
- Pressure tested block (no leaks)
- Ultrasonic cylinder wall thickness (chart included)
- Deburred block
- Bored and honed with torque plate
- Squared deck block
- Aligned honed mains
- Degauzed all parts
- Plugged piston squirts on
- Installed block freeze plug kit
- ARP main studs with cross bolts
- BTP BH57-1075-040-8 pistons
- MTI 345-4080-JA6F Molnar crank 4,080.STK 2000 rod pin
- MTI DN 6125LFBB-8 Molnar connecting rods
- ARP 244-5700 Hemi main studs
- MSS MS 22204 Main bearings
- CHR 6506397AA Hemi crank key
- Compression Ratios
- 5:1 with 80cc heads, OEM
- 4:1 with 73cc heads, EDEC
- 6:1 with 65cc heads, EAGLE
- Internal balanced
